  探測工程内容    快速紅外線檢測
  External Wall Delamination Survey 外牆飾面缺損勘察
Water Seepage Detection 滲漏檢測
Fluorescent Dye Test (FDT) 螢光試劑測試
Infrared Electrical Inspection (IEI) 紅外線電機檢測


外牆飾面缺損勘察
External Wall Delamination Survey

Debonding Detection Technology On External Wall
Rapid Infrared Thermographic Survey (RITS) is the most sophisticated technique to examine the external wall finishes. RITS identifies the debonding or water leakage problem. It provides the efficient and effective evaluation about the building condition for your building monitoring and maintenance plan. RITS is well-recognized as a quick and accurate non-destructive testing to examine building structures.

Principle

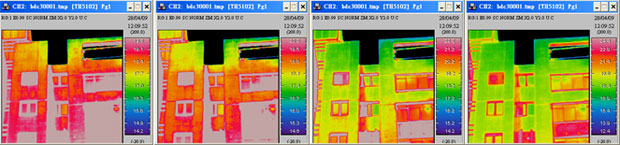

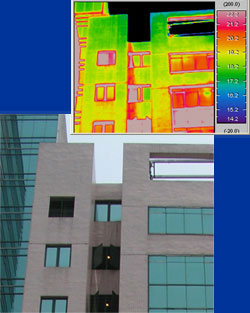

Delaminated area, with air void as insulation, has higher temperature than normal one under solar radiation. Infra-red thermo tracer can pick up these slightly temperature differences and transfer to thermal images in order to locate the problematic area.

This technology has been accepted as the most effective approach because of

•Low cost of survey
•Non-destructive and non-contact
•Efficient and Effective
•Actual data that can be used as evidence for presentation
•Objects Results
